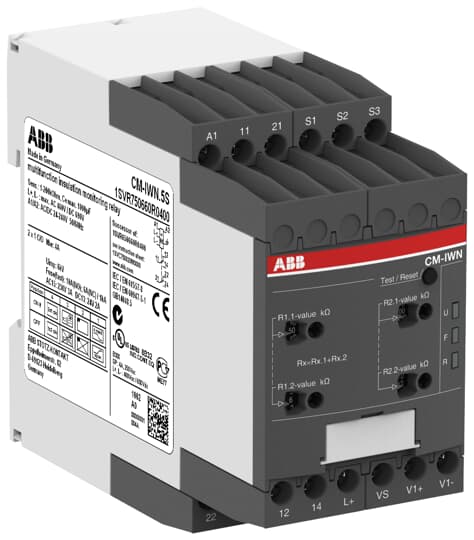

CM-IWN.5S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CM-IWN.5S |
| Product ID: | 1SVR750660R0400 |
| EAN: | 4016779876537 |
| Catalog Description: | CM-IWN.5S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC |
| Long Description: | CM-IWN.5S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC System leakage capacitance 1000 µF Replacement for 1SVR650660R0400 |
| |
| EAN: | 4016779876537 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Depth / Length: | 52.5 mm |
| Package Level 1 Gross Weight: | 0.27 kg |
| Package Level 1 EAN: | 4016779876537 |
| |
| Product Net Width: | 45 mm |
| Product Net Depth / Length: | 104.8 mm |
| Product Net Height: | 85.6 mm |
| Product Net Weight: | 0.241 kg |
| |
| Function: | Unearthed AC systems |
| Unearthed DC systems | |
| Unearthed mixed AC / DC systems | |
| Up to 400 V AC | |
| Up to 600 V DC | |
| Measuring Range: | 1 ... 200 kΩ |
| Rated Control Supply Voltage (Us): | 24 ... 240 V AC/DC |
| Output: | 2 x 1 c/o or 1 x 2 c/o contacts, configurable |
| System Leakage Capacitance (CE): | 1000 µF |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-30302-A1-UL |
| CCC Certificate: | CCC_2010010303438770 |
| CQC Certificate: | CQC2010010303438770 |
| cULus Certificate: | cULus508_20120727-E140448 |
| Data Sheet, Technical Information: | 2CDC112197D0201 |
| Declaration of Conformity - CCC: | 2020980303000184 |
| Declaration of Conformity - CE: | 1SVD981012 |
| EAC Certificate: | EAC_RU_C-DE.ME77.B.03424 |
| Environmental Information: | 1SAA981018-2402 |
| Instructions and Manuals: | 1SVC750030M0000 |
| RMRS Certificate: | RMRS_1740020250 |
| RoHS Information: | 1SVD981012 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 5: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 6: | EC001444 - Insulation and earth fault monitoring relay |
| ETIM 7: | EC001444 - Insulation and earth fault monitoring relay |
| eClass: | V11.0 : 27371807 |
