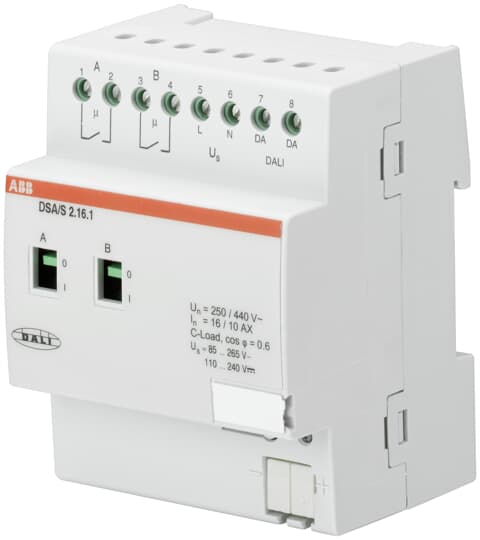

DSA/S2.16.1 DALI Switch Actuator, 2-fold, 16 A, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DSA/S2.16.1 |
| Product ID: | 2CDG110009R0011 |
| EAN: | 4016779585842 |
| Catalog Description: | DSA/S2.16.1 DALI Switch Actuator, 2-fold, 16 A, MDRC |
| Long Description: | DALI Switch Actuator, 2-fold, 16AX, C-LoadUses potential free contacts to switch 2 independent electrical loads via DALI control (Digital Addressable Lighting Interface). Manual operation and display of the switching state of the contacts. The 16AX-AC3 (C-Load) device is especially suitable for loads with high surge currents e.g. fluorescent lighting (AX) acc. EN 60669. |
| |
| Product Name: | Lighting Control |
| Voltage Range: | 230 V |
| Auxiliary Voltage AC/DC: | 110 ... 230 V AC |
| Rated Current (In): | 16 A |
| Maximum Switching Current: | 16 mA |
| Maximum Switching Power: | 3680 W |
| Power Loss: | 1 W |
| Contact Position Indication: | ON / OFF |
| Number of Outputs: | 2 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | DALI |
| KNX (TP) | |
| Mounting Type: | DIN-rail |
| Manual Operation: | Yes |
| Suitable for C-Load: | No |
| Color: | Light grey |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.21 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.24 kg |
| Package Level 1 EAN: | 4016779585842 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK030001D0602 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC507053D0201 |
| |
| ETIM 6: | EC001097 - Switch actuator for bus system |
| ETIM 7: | EC001097 - Switch actuator for bus system |
| ETIM 8: | EC001097 - Switch actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| UNSPSC: | 31251516 |
| eClass: | V11.0 : 27143125 |
| IDEA Granular Category Code (IGCC): | 3268 >> Switch actuator |
| Object Classification Code: | A |
