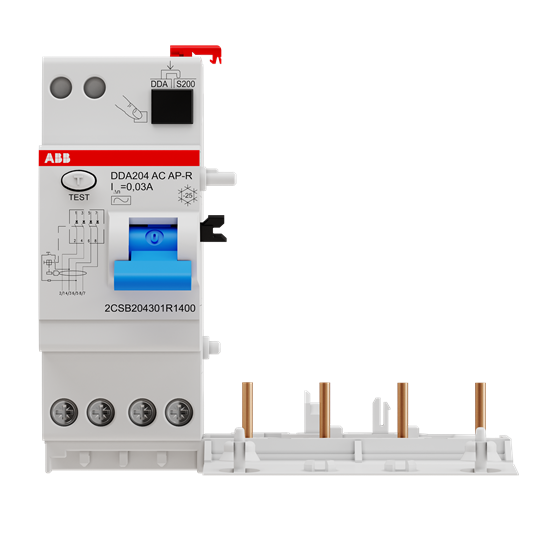

DDA204 AC-40/0.03 AP-R Residual Current Device Block
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DDA204 AC-40/0.03 AP-R |
| Product ID: | 2CSB204301R1400 |
| EAN: | 8012542800903 |
| Catalog Description: | DDA204 AC-40/0.03 AP-R Residual Current Device Block |
| Long Description: | The RCD block DDA200 series is suitable for assembly with MCBs S200 series. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial. |
| |
| Standards: | EN 61009 Ann. G |
| Product Name: | Residual Current Device Block |
| Type of Residual Current: | AC type |
| Rated Operational Voltage: | 230/400 V |
| Rated Current (In): | 40 A |
| Rated Residual Current: | 30 mA |
| Rated Frequency (f): | 50/60 Hz |
| Power Loss: | 4.8 W |
| Number of Poles: | 4 |
| Operating Characteristic: | Instantaneous (APR High Immunity) |
| |
| Environmental Information: | document not needed |
| |
| Product Net Width: | 105 mm |
| Product Net Height: | 93 mm |
| Product Net Depth / Length: | 76 mm |
| Product Net Weight: | 0.290 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 118 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 104 mm |
| Package Level 1 Gross Weight: | 0.394 kg |
| Package Level 1 EAN: | 8012542800903 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363030 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5614 |
| Environmental Information: | document not needed |
| Instructions and Manuals: | 9AKK106930A4375 |
| RoHS Information: | 2CSC427001K0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 9AKK106930A4375 |
| |
| ETIM 6: | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 7: | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 8: | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85363030 |
| Object Classification Code: | F |
