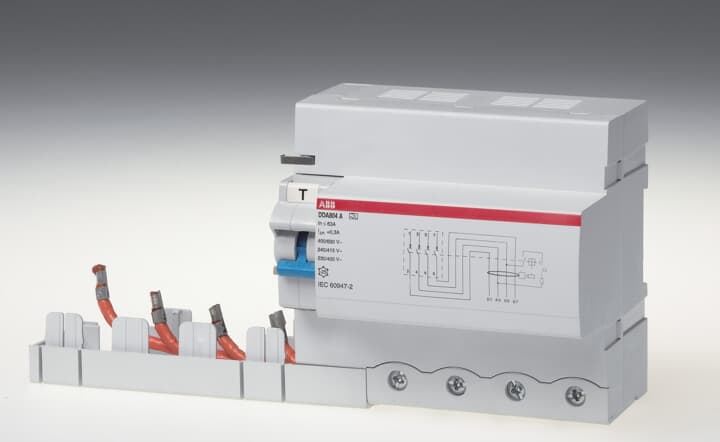

DDA804AC-63/0.03 Residual Current Device Block
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | DDA804AC-63/0.03 |
| Product ID: | 2CSB804001R1630 |
| EAN: | 8012542924401 |
| Catalog Description: | DDA804AC-63/0.03 Residual Current Device Block |
| Long Description: | The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series up to 63A. |
| |
| Standards: | IEC EN 60947-2 Ann. B |
| Product Name: | Residual Current Device Block |
| Type of Residual Current: | AC type |
| Rated Voltage (Ur): | 230/400 V AC |
| 240/415 V AC | |
| 400/690 V AC | |
| Rated Operational Voltage: | 400/690 V |
| Rated Insulation Voltage (Ui): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Current (In): | 63 A |
| Rated Residual Current: | 30 mA |
| Maximum Surge Current: | 0.25 kA |
| Leakage Current Type: | AC |
| Power Loss: | 13.5 W |
| Number of Poles: | 4 |
| Operating Characteristic: | Instantaneous |
| Options Provided: | - |
| Rated Cross-Section: | 4 - Multi-Wired 6...50 mm² |
| 1 - Solid-Core 6...70 mm² | |
| |
| Ambient Temperature: | -25...60 °C |
| Ambient Air Temperature: | Operation -25...60 °C |
| Degree of Protection: | IP2X |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | document not needed |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 0.03 ... 0.03 A |
| |
| Product Net Width: | 0.223 m |
| Product Net Height: | 0.108 m |
| Product Net Depth / Length: | 0.076 m |
| Product Net Weight: | 0.460 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.12 m |
| Package Level 1 Height: | 0.094 m |
| Package Level 1 Depth / Length: | 0.226 m |
| Package Level 1 Gross Weight: | 0.56 kg |
| Package Level 1 EAN: | 8012542924401 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363030 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5616 |
| Environmental Information: | document not needed |
| Instructions and Manuals: | 2CSB427001D0003 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC400002D0209 |
| Instructions and Manuals: | 2CSB427001D0003 |
| |
| ETIM 6: | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 7: | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 8: | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85363030 |
| Object Classification Code: | F |
