Article: DMTME-I-485-96
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | DMTME-I-485-96 |
| Product ID: | 2CSG163030R4022 |
| EAN: | 8012542046851 |
| Catalog Description: | DMTME-I-485-96 Multimeter |

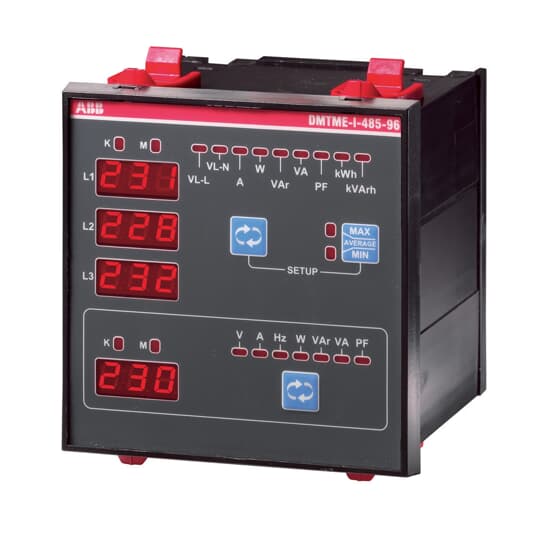

| Long Description: | DMTME-I-485-96 is a 96x96mm front-panel digital multimeter for measurement of main electrical parameters, with two digital outputs and embedded RS485. |
| |
| Product Name: | Multimeter |
| Current Type: | Mains |
| Power Consumption (@P | |
| cons | 6 V·A |
| Accuracy: | Active Energy ±1% |
| Number of Input Channels: | Number of voltage input channels: 3 |
| Number of current input channels: 3 | |
| Mounting Type: | Front panel (96x96 mm) |
| Type of Indicator: | Digital |
| I/O Option: | 2 digital outputs |
| Options Provided: | None |
| Additional Information: | CT (5A) |
| Communication: | Modbus RTU |
| |
| Ambient Air Temperature: | Operation 0 ... 50 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CSC445014K270 |
| |
| Product Net Width: | 96 mm |
| Product Net Height: | 26.5 mm |
| Product Net Depth / Length: | 103 mm |
| Product Net Weight: | 0.420 kg |
| Dimensions: | 96 mm x 96 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.103 m |
| Package Level 1 Height: | 0.096 m |
| Package Level 1 Depth / Length: | 0.096 m |
| Package Level 1 Gross Weight: | 0.45 kg |
| Package Level 1 EAN: | 8012542046851 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303100 |
| Country of Origin: | Romania (RO) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5703 |
| Environmental Information: | 2CSC445014K270 |
| Instructions and Manuals: | 9AKK106713A7004 |
| RoHS Information: | 2CSC445014K270 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0430 |
| Instructions and Manuals: | 9AKK106713A7004 |
| |
| ETIM 6: | EC001194 - Power quality analyzer |
| ETIM 7: | EC001194 - Power quality analyser |
| ETIM 8: | EC001194 - Power quality analyser |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303100 |
| Object Classification Code: | P |
