General Information | |
| Extended Product Type: | RTK |
| Product ID: | GHQ3201973R0021 |
| EAN: | 4016779506557 |
| Catalog Description: | RTK Reed Contact for Rolling Doors, VdS B |

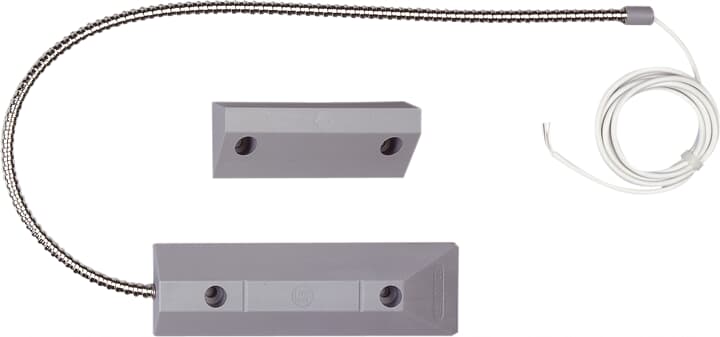

| Long Description: | For monitoring opening or rolling doors or other large doors in the industrial field. Contents: 1 magnet, 1 reed contact with 2 m connection cable 4 x 0.14 mm², 1 m protective tubing and 1 set of mounting accessories. Degree of protection: IP 68, Environmental class to VdS 4, VdS class B. |
| |
| Product Name: | Conventional |
| Voltage Range: | 10 ... 30 V DC |
| Maximum Switching Current: | 0.5 mA |
| Power Loss: | 0 W |
| Number of Outputs: | 0 |
| Mounting Type: | Surface Mounted |
| Built-on | |
| Manual Operation: | No |
| |
| Degree of Protection: | IP68 |
| |
| Product Net Width: | 50 mm |
| Product Net Height: | 19 mm |
| Product Net Depth / Length: | 159 mm |
| Product Net Weight: | 0.38 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 43 mm |
| Package Level 1 Height: | 97 mm |
| Package Level 1 Depth / Length: | 288 mm |
| Package Level 1 Gross Weight: | 0.43 kg |
| Package Level 1 EAN: | 4016779506557 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365011 |
| E-Number (Switzerland): | 961810903 |
| Replacement Product ID (NEW): | 2CDG250006R0011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540206D2701 |
| Instructions and Manuals: | 2CDG941124P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDG941124P0001 |
| Instructions and Manuals: | 2CDG941124P0001 |
| |
| ETIM 6: | EC001761 - Opening detector for intrusion detection system |
| ETIM 7: | EC001761 - Opening detector for intrusion detection system |
| ETIM 8: | EC001761 - Opening detector for intrusion detection system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8536 50 11 |
| eClass: | V7.0 : 27399209 |
| Object Classification Code: | A |
