General Information | |
| Extended Product Type: | SSM/A |
| Product ID: | 2CDG240019R0011 |
| EAN: | 4016779837460 |

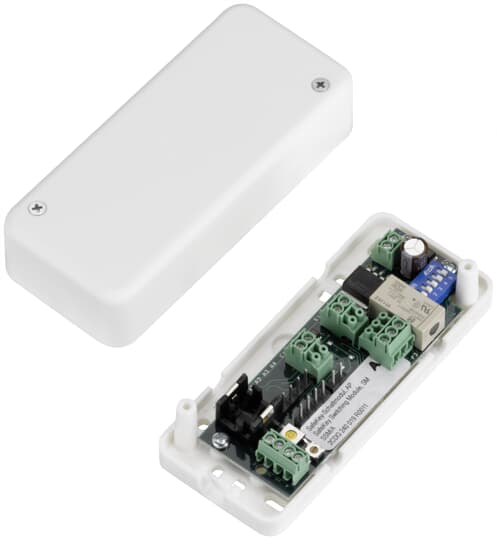

| Catalog Description: | SSM/A SafeKey Switching Module, Surface Mounted |
| Long Description: | is used for an easy connection and evaluation of the SafeKey Wall Reader with or without keypad (WEL or WELT). Applicable for potential-free switching of electrical components up to 5 A at a max. voltage of 12...24 V DC/AC, i.e. electrical door opener or garage doors, or to set/unset a KNX security system via the connection to a Security Terminal MT/x. The module can be used for surface mount. A 12 V power supply is required. |
| |
| Product Name: | Conventional |
| Power Loss: | 0.7 W |
| Number of Batteries: | 0 |
| |
| Product Net Width: | 114 mm |
| Product Net Height: | 50 mm |
| Product Net Depth / Length: | 26 mm |
| Product Net Weight: | 0.071 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 148 mm |
| Package Level 1 Height: | 66 mm |
| Package Level 1 Depth / Length: | 112 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 4016779837460 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Instructions and Manuals: | 2CDG941085P0002 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC541165D0201 |
| Instructions and Manuals: | 2CDG941085P0002 |
| |
| ETIM 6: | EC000782 - Access control unit for bus system |
| ETIM 7: | EC000782 - Access control unit for bus system |
| ETIM 8: | EC000782 - Access control unit for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27143141 |
| Object Classification Code: | A |
