General Information | |
| Extended Product Type: | S2-M3-50 |
| Product ID: | 1SAM401923R1003 |
| EAN: | 4013614555725 |

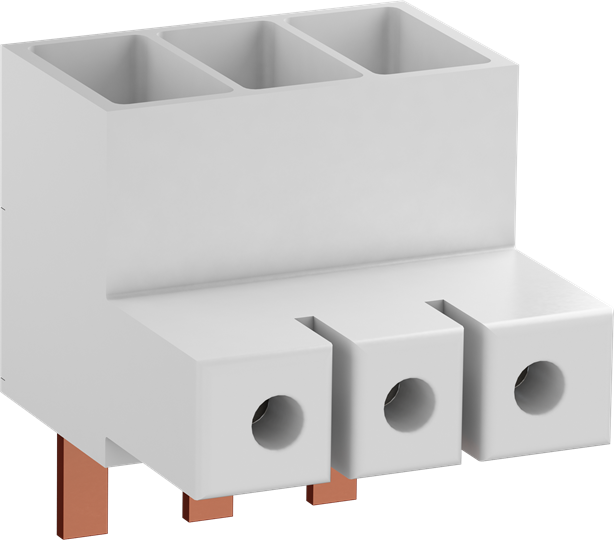

| Catalog Description: | S2-M3-50 Power Infeed Block |
| Long Description: | S2-M3-50 3-phase Power infeed Block for MS165, 50 mm² |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C02-- |
| Instructions and Manuals: | 2CDC131081M6801 |
| |
| Product Net Width: | 54 mm |
| Product Net Height: | 65 mm |
| Product Net Depth / Length: | 59.3 mm |
| Product Net Weight: | 0.172 kg |
| |
| Terminal Type: | Screw Terminals |
| Rated Operational Voltage: | 690 V AC |
| 250 V DC | |
| Rated Operational Current (Ie): | 125 A |
| Number of Poles: | 3 |
| Degree of Protection: | IP20 |
| Connecting Capacity Main Circuit: | Flexible 1x 10 ... 50 mm² |
| Rigid 1x 10 ... 50 mm² | |
| Tightening Torque: | Main Circuit 6 N·m |
| Wire Stripping Length: | Main Circuit 16 mm |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Product Name: | Power Infeed Block |
| Suitable For: | MS165 |
| MO165 | |
| Suitable for Product Class: | Manual Motor Starters |
| Accessory Group: | Electrical |
| Accessory Type: | 3-Phase Power Infeed Block |
| Remarks: | UL/CSA Type E/F and IEC |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 120 A |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1x 8-0 AWG |
| Stranded 1x 8-0 AWG | |
| Tightening Torque UL/CSA: | Main Circuit 54 in·lb |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -50 ... +85 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SAD938504-0193 |
| Instructions and Manuals: | 2CDC131081M6801 |
| RoHS Information: | 1SAD938503-0193 |
| |
| Package Level 1 Width: | 80 mm |
| Package Level 1 Depth / Length: | 59 mm |
| Package Level 1 Height: | 64 mm |
| Package Level 1 Gross Weight: | 0.19 kg |
| Package Level 1 EAN: | 4013614555725 |
| Package Level 1 Units: | box 1 piece |
| |
| Object Classification Code: | X |
| ETIM 5: | EC000275 - Rail terminal bar |
| ETIM 6: | EC000275 - Rail terminal bar |
| ETIM 7: | EC000275 - Rail terminal bar |
| eClass: | V11.0 : 27400603 |
| UNSPSC: | 39121410 |
| IDEA Granular Category Code (IGCC): | 4561 >> Power Blocks & Distribution Blocks |
