Article: S800-RHE-H
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S800-RHE-H |
| Product ID: | 1SDA060150R0001 |
| EAN: | 8015644625764 |

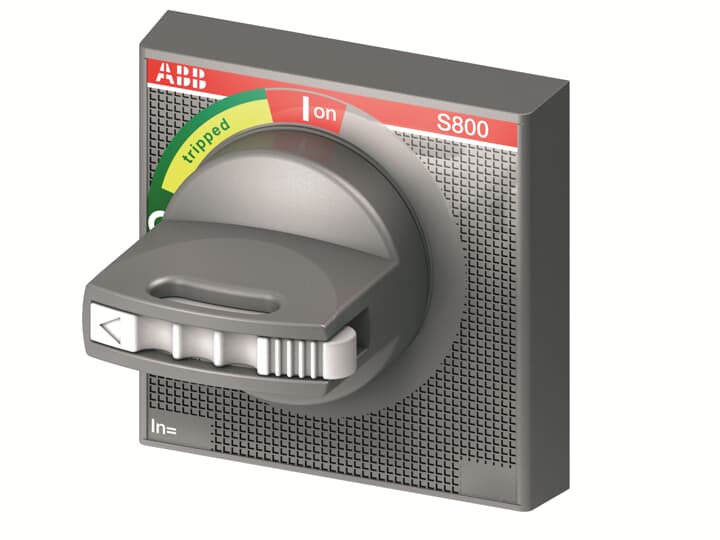

| Catalog Description: | S800-RHE-H Anthracite rotary handle |
| Long Description: | The S800-RHE-EM is a black rotary handle for door assembly. It has to be used together with S800-RD the rotary drive adapter for 2- to 4-pole S800.For an extension you can use the S800-RHE-S the axial extension with a length of 500m and a diameter of 6 x 6mm. |
| |
| Product Name: | Anthracite rotary handle |
| Suitable For: | S800S, S800N, S800C, S800B, S800HV, S800U, S800PV-SP, S800PV-SD, S800PV-M-H |
| Remarks: | Can be used together with S800-RHE-S (axial extension) with 500mm length and S800-RD (rotary drive adapter for 2-4-pole S800) |
| Color: | Red |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie |
| Resistance to Shock acc. to IEC 60068-2-27: | 5 g |
| 30 ms | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 76 mm |
| Product Net Height: | 76 mm |
| Product Net Depth / Length: | 67 mm |
| Product Net Weight: | 20 g |
| Product Net Length: | 67 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 110 mm |
| Package Level 1 Height: | 103 mm |
| Package Level 1 Depth / Length: | 145 mm |
| Package Level 1 Gross Weight: | 23 g |
| Package Level 1 EAN: | 8015644625764 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389040 |
| E-Number (Finland): | 3212416 |
| Country of Origin: | Tunisia (TN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 9AKK107680A3903 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| |
| ETIM 6: | EC000229 - Handle for power circuit breaker |
| ETIM 7: | EC000229 - Handle for power circuit breaker |
| ETIM 8: | EC000229 - Handle for power circuit breaker |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85389040 |
| Object Classification Code: | F |
