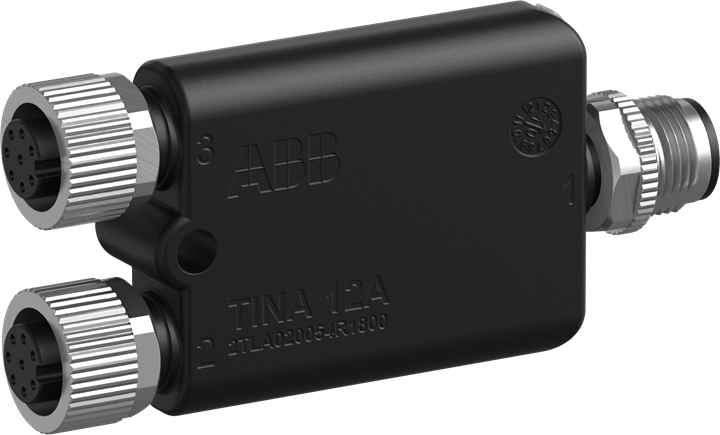

Article: Tina 12A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Tina 12A |
| Product ID: | 2TLA020054R1800 |
| EAN: | 7350024451986 |
| Catalog Description: | Tina 12A DYNlink connection accessory |
| Long Description: | Connection block for series connection of 2 DYNlink devices with M12-8 connectors, e.g. Magne, Dalton M12 with Eden DYN or Knox (M12-8). Two M12-8 female connectors for the devices and one M12-8 male connector towards the DYNlink loop. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85439000 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2): | 2TLC010088D0201 |
| Instructions and Manuals: | 2TLC172153M0201 |
| |
| Product Net Depth / Length: | 14 mm |
| Product Net Height: | 35 mm |
| Product Net Width: | 77 mm |
| Product Net Weight: | 0.04 kg |
| |
| Suitable For: | Pluto AS-i v2 |
| Pluto A20 v2 | |
| Pluto B20 v2 | |
| Pluto B22 | |
| Pluto B42 AS-i | |
| Pluto B46 v2 | |
| Pluto D20 | |
| Pluto D20 (Harsh Env) | |
| Pluto D45 | |
| Pluto D45 (Harsh Env) | |
| Pluto O2 | |
| Pluto S20 v2 | |
| Pluto S46 v2 | |
| Vital 1 | |
| Vital 2 | |
| Vital 3 | |
| Magne 2A | |
| Magne 2B | |
| Knox 2A v2 | |
| |
| CSA Certificate: | 2TLC172045D0201 |
| Declaration of Conformity - CE: | 2TLC172017D0201 |
| Instructions and Manuals: | 2TLC172153M0201 |
| TÜV Certificate: | 2TLC172046D0401 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC001584 - I/O device for bus system |
| ETIM 5: | EC001584 - I/O device for bus system |
| ETIM 6: | EC001584 - I/O device for bus system |
| ETIM 7: | EC001584 - I/O device for bus system |
| UNSPSC: | 39122221 |
| E-Number (Finland): | 2307394 |
| E-Number (Sweden): | 3860126 |
