Article: S803-BBPC120
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S803-BBPC120 |
| Product ID: | 2CCS800900R0101 |
| EAN: | 7612271208301 |

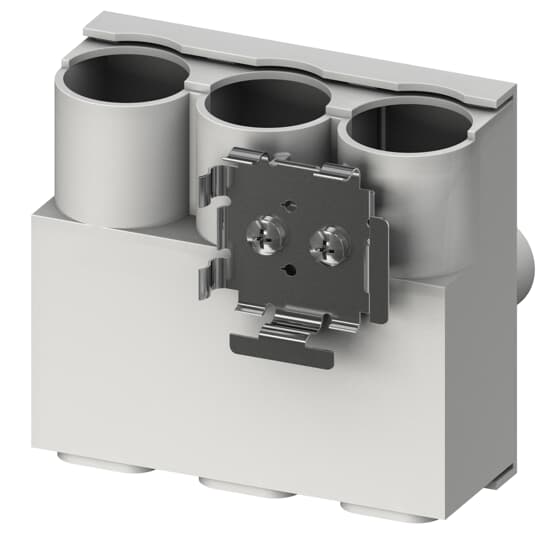

| Catalog Description: | S803-BBPC120 Feed block |
| Long Description: | The S803-BBPC120 is a 3-pole incombing block for the busbar S803-BB250. The terminal cross section is 120mm2. |
| |
| Standards: | IEC 60439-2 |
| Product Name: | Feed block |
| Suitable For: | S800-BB |
| Rated Operational Voltage: | 400/690 V AC |
| Rated Insulation Voltage (Ui): | 690 V AC |
| Rated Current (In): | 250 A |
| Rated Operational Current (Ie): | 250 A |
| Rated Frequency (f): | 50...60 Hz |
| Tightening Torque: | 3.5 N·m |
| Housing Material: | Insulation group I |
| Recommended Screw Driver: | Pozidriv 2 |
| Model Number: | Flat |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection: | acc. to IEC 60529 IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 79 mm |
| Product Net Height: | 73.25 mm |
| Product Net Depth / Length: | 56.25 mm |
| Product Net Weight: | 467 g |
| Product Net Length: | 56.25 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 500 g |
| Package Level 1 EAN: | 7612271208301 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| E-Number (Finland): | 3212456 |
| Country of Origin: | Austria (AT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 2CCC413003C0201 |
| 9AKK107680A3903 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| Dimension Diagram: | 2CCC413003C0201 |
| |
| ETIM 6: | EC001522 - Busbar |
| ETIM 7: | EC001522 - Busbar |
| ETIM 8: | EC001522 - Busbar |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85389030 |
| Object Classification Code: | F |
