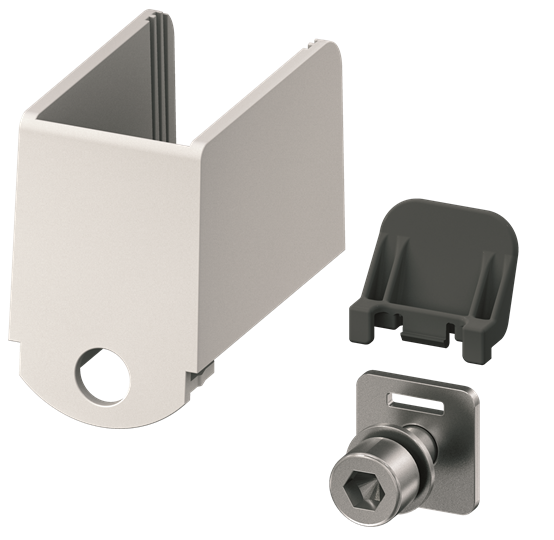

S800-RT2125 Ring Terminal cable connection
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S800-RT2125 |
| Product ID: | 2CCS800900R0161 |
| EAN: | 7612271208240 |
| Catalog Description: | S800-RT2125 Ring Terminal cable connection |
| Long Description: | The S800-RT2125 is a ring tongue terminal kit. Inisde of packaging are two terminals to change 1-pole. The modification can be done very easy and fast. |
| |
| Standards: | IEC/EN 60947-2 |
| Product Name: | Ring Terminal cable connection |
| Suitable For: | S800S, S800N, S800C, S800U, S800PV-SP, S800PV-SD, S800PV-M-H |
| Tightening Torque: | 3.5 N·m |
| Recommended Screw Driver: | Pozidriv 2 |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection: | acc. to IEC 60529 IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 27 mm |
| Product Net Height: | 12 mm |
| Product Net Depth / Length: | 45 mm |
| Product Net Weight: | 34 g |
| Product Net Length: | 45 mm |
| |
| Package Level 1 Units: | bag 2 piece |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Height: | 40 mm |
| Package Level 1 Depth / Length: | 125 mm |
| Package Level 1 Gross Weight: | 70 g |
| Package Level 1 EAN: | 7612271208240 |
| |
| Minimum Order Quantity: | 2 piece |
| Customs Tariff Number: | 85389040 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | pack |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 2CCY412101D0601 |
| 9AKK107680A3903 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| |
| ETIM 6: | EC002278 - Distributor assembly miniature circuit breaker (MCB) |
| ETIM 7: | EC002278 - Distributor assembly miniature circuit breaker (MCB) |
| ETIM 8: | EC002278 - Distributor assembly miniature circuit breaker (MCB) |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85389040 |
| Object Classification Code: | F |
