Article: S800-SOR12
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S800-SOR12 |
| Product ID: | 2CCS800900R0201 |
| EAN: | 7612271212070 |

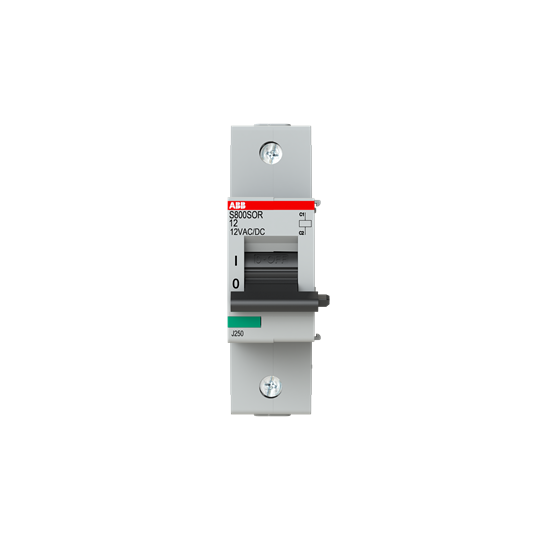

| Catalog Description: | S800-SOR12 Shunt operation release |
| Long Description: | The S800-SOR12 is a 12V shunt opening release is for remote release of the S800 High Performance MCB using an electrical impulse. Operation of the trigger is guaranteed at a voltage between 70% and 110% of the rated voltage Un - both for AC and DC. The S800-SOR12 can be mounted by the user at the left side of S800 High Performance MCB. |
| |
| Standards: | IEC/EN 60947-2 |
| Product Name: | Shunt operation release |
| Suitable For: | S800S, S800N, S800C, S800B, S800HV, S800U, S800PV-SP, S800PV-SD, S800PV-M-H |
| Rated Operational Voltage: | 12 V AC/DC |
| Rated Insulation Voltage (Ui): | 690 V AC |
| Rated Control Supply Voltage (Us): | (50 Hz) 12...12 V |
| (50 Hz) 12...12 V | |
| (60 Hz) 12...12 V | |
| (60 Hz) 12...12 V | |
| (DC) 12...12 V | |
| (DC) 12...12 V | |
| Rated Frequency (f): | 50...60 Hz |
| Power Loss: | 15.5 W |
| Number of Contacts CO: | 0 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 1 |
| Tightening Torque: | 3.5 N·m |
| Actuator Marking: | I / O |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position: | Any |
| Recommended Screw Driver: | Pozidriv 2 |
| Connecting Capacity: | Flexible 1 ... 25 mm² |
| Stranded 1 ... 35 mm² | |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection: | acc. to IEC 60529 IP20 |
| Environmental Conditions: | Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle |
| Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96% | |
| Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100% | |
| Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C | |
| Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 27 mm |
| Product Net Height: | 95 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 150 g |
| Product Net Length: | 82.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Depth / Length: | 35 mm |
| Package Level 1 Gross Weight: | 170 g |
| Package Level 1 EAN: | 7612271212070 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389040 |
| E-Number (Finland): | 3212431 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC413003D0201 |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 2CCC413003D0201 |
| 9AKK107680A3903 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| Dimension Diagram: | 2CCC413003C0201 |
| |
| ETIM 6: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 7: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8: | EC001023 - Shunt release (for power circuit breaker) |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85389040 |
| Object Classification Code: | F |
