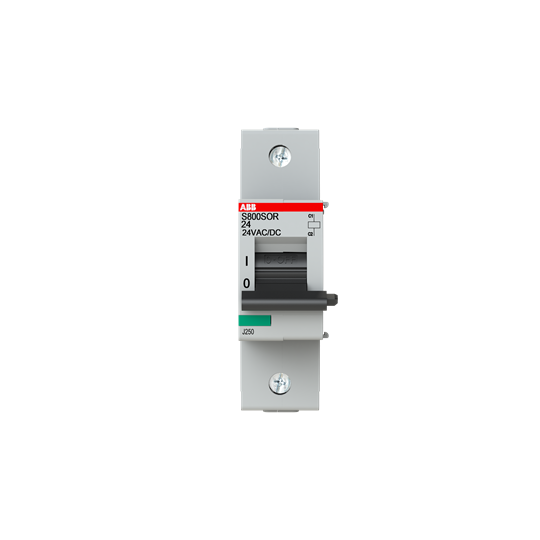

Article: S800-SOR24
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | S800-SOR24 |
| Product ID: | 2CCS800900R0191 |
| EAN: | 7612271208318 |
| Catalog Description: | S800-SOR24 Shunt operation release |
| Long Description: | S800-SOR24 Shunt operation release 24 V AC / DC |
| |
| Standards: | IEC 60947-5-1_UL489 |
| Product Name: | Shunt operation release |
| Suitable For: | S800S, S800N, S800C, S800B, S800HV, S800U, S800PV-SP, S800PV-SD, S800PV-M-H |
| Rated Voltage (Ur): | 24 V |
| Rated Operational Voltage: | 24 V |
| Rated Control Supply Voltage (Us): | (50 Hz) 24...24 V |
| (50 Hz) 24...24 V | |
| (60 Hz) 24...24 V | |
| (60 Hz) 24...24 V | |
| (DC) 24...24 V | |
| (DC) 24...24 V | |
| Frequency (f): | 50/60 Hz |
| Power Loss: | 16.6 W |
| 17 V·A | |
| Number of Contacts CO: | 0 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 1 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 27 mm |
| Product Net Height: | 95 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 150 g |
| Product Net Length: | 27 mm |
| Size: | 1 module |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Depth / Length: | 35 mm |
| Package Level 1 Gross Weight: | 170 g |
| Package Level 1 EAN: | 7612271208318 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389040 |
| E-Number (Finland): | 3212432 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC413003D0201 |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 2CCC413003D0201 |
| 9AKK107680A3903 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| Dimension Diagram: | 2CCC413003C0201 |
| |
| ETIM 6: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 7: | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 8: | EC001023 - Shunt release (for power circuit breaker) |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85389040 |
| Object Classification Code: | F |
