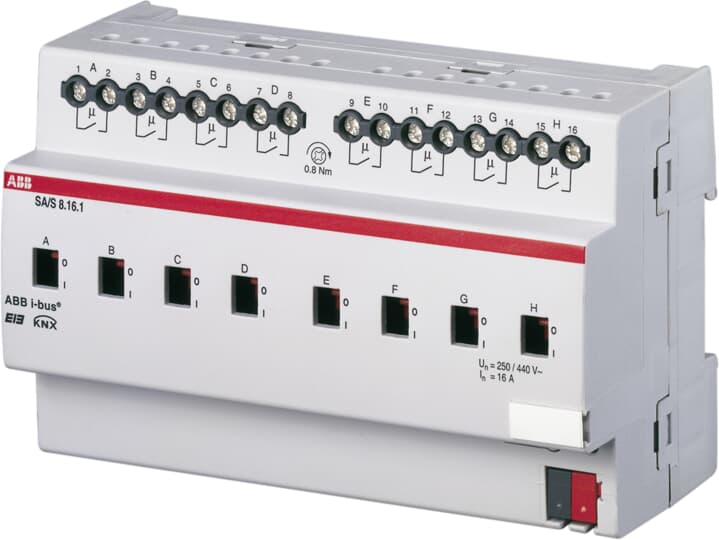

SA/S8.16.1 Switch Actuator, 8-fold, 16 A, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SA/S8.16.1 |
| Product ID: | 2CDG110064R0011 |
| EAN: | 4016779648752 |
| Catalog Description: | SA/S8.16.1 Switch Actuator, 8-fold, 16 A, MDRC |
| Long Description: | Uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16A-AC1 device is especially suited for resistive loads. |
| |
| Product Name: | Standard Outputs |
| Function: | Switch Actuator |
| Sub-Function: | 8-fold |
| Sub-Function 2: | 6 A |
| Voltage Range: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | KNX |
| Rated Current (In): | 16 A |
| Maximum Switching Current: | 16 mA |
| Number of Outputs: | 8 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Manual Operation: | Yes |
| Suitable for C-Load: | No |
| Color: | Light grey |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | No declaration needed |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.459 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 0.51 kg |
| Package Level 1 EAN: | 4016779648752 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK505045D0601 |
| RoHS Information: | 2CDG510006-0010 |
| Popular Downloads | |
| Installing and Commissioning Manual: | 2CDC505056D0201 |
| |
| ETIM 6: | EC001097 - Switch actuator for bus system |
| ETIM 7: | EC001097 - Switch actuator for bus system |
| ETIM 8: | EC001097 - Switch actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| UNSPSC: | 31251516 |
| eClass: | V11.0 : 27143125 |
| IDEA Granular Category Code (IGCC): | 3268 >> Switch actuator |
