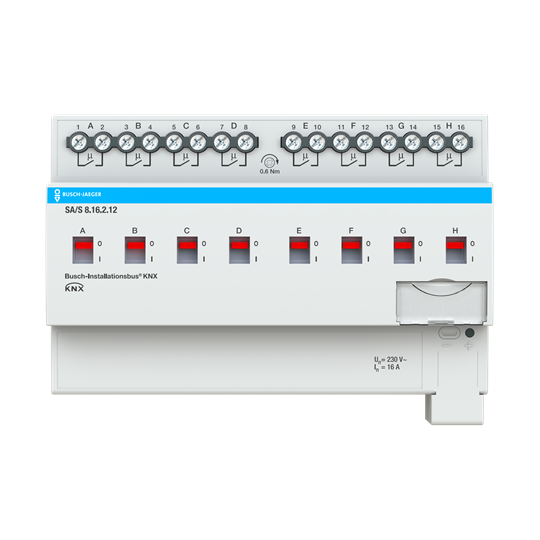

SA/S8.16.2.12 Switch Actuator, 8-fold, 16 A, MDRC, BJE
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SA/S8.16.2.12 |
| Product ID: | 2CDG110263R0021 |
| EAN: | 4016779066686 |
| Catalog Description: | SA/S8.16.2.12 Switch Actuator, 8-fold, 16 A, MDRC, BJE |
| Long Description: | The switch actuator uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16 A device is especially suited for resistive loads. |
| |
| Product Name: | Standard Outputs |
| Rated Voltage (Ur): | 230 V |
| Voltage Range: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | KNX |
| Rated Current (In): | 16 A |
| Maximum Switching Current: | 16 mA |
| Rated Frequency (f): | 50...60 Hz |
| Maximum Switching Power: | 2500 W |
| Power Loss: | 8 W |
| Contact Position Indication: | ON / OFF |
| Number of Outputs: | 8 |
| Number of LEDs: | 1 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Product Range: | ABB i-bus® KNX |
| Load Type: | AC1 |
| Mounting Type: | DIN-Rail |
| Manual Operation: | No |
| Suitable for C-Load: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5...45 °C |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 140 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 63.5 mm |
| Product Net Weight: | 0.406 kg |
| Built-In Depth (t2): | 64.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 125 mm |
| Package Level 1 Height: | 96 mm |
| Package Level 1 Depth / Length: | 182 mm |
| Package Level 1 Gross Weight: | 0.5 kg |
| Package Level 1 EAN: | 4016779066686 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK505258D2701 |
| Instructions and Manuals: | 2CDG941215P0101 |
| RoHS Information: | 2CDK505258D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC505194D0121 |
| Instructions and Manuals: | 2CDG941215P0101 |
| |
| ETIM 6: | EC001097 - Switch actuator for bus system |
| ETIM 7: | EC001097 - Switch actuator for bus system |
| ETIM 8: | EC001097 - Switch actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| UNSPSC: | 31251516 |
| eClass: | V11.0 : 27143125 |
| IDEA Granular Category Code (IGCC): | 3268 >> Switch actuator |
