Article: URAX-B1R
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | URAX-B1R |
| Product ID: | 2TLA020072R0200 |
| EAN: | 7320500410714 |

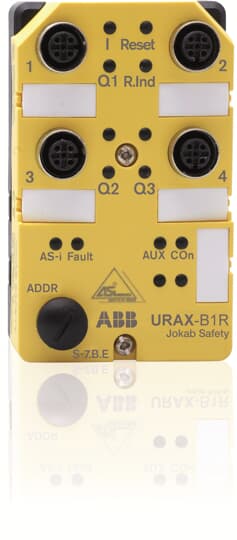

| Catalog Description: | URAX-B1R AS-i safe input slave |
| Long Description: | Safe input slave for AS-i bus for DYNlink devices+ 3 non-safe outputs + input for local reset. Ex. of devices: Magne, Knox and Dalton. Up to 10 devices in series. Black AS-i cable needed. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364110 |
| Popular Downloads | |
| Data Sheet, Technical Information (Part 2): | 2TLC010092D0201 |
| Instructions and Manuals: | 2TLC172008M0201 |
| |
| Product Net Depth / Length: | 32 mm |
| Product Net Height: | 96 mm |
| Product Net Width: | 60 mm |
| Product Net Weight: | 0.18 kg |
| |
| Diagnostic Coverage: | High |
| Performance Level (PL): | Up to e |
| Suitable For: | Pluto AS-i v2 |
| Pluto B42 AS-i | |
| |
| Declaration of Conformity - CE: | 2TLC172012D0201 |
| Environmental Information: | 2TLC172002D0201 |
| Instructions and Manuals: | 2TLC172008M0201 |
| RoHS Information: | 2TLC172007D0201 |
| TÜV Certificate: | 2TLC172336D0401 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001584 - I/O device for bus system |
| ETIM 5: | EC001584 - I/O device for bus system |
| ETIM 6: | EC001584 - I/O device for bus system |
| E-Number (Finland): | 2712189 |
| E-Number (Sweden): | 3860092 |
