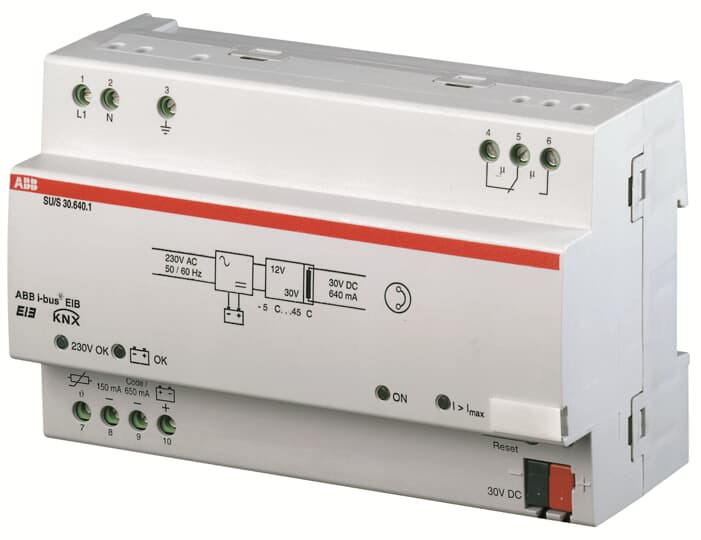

SU/S30.640.1 Uninterruptible EIB Power Supply, 640 mA, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SU/S30.640.1 |
| Product ID: | GHQ6310049R0111 |
| EAN: | 4016779514774 |
| Catalog Description: | SU/S30.640.1 Uninterruptible EIB Power Supply, 640 mA, MDRC |
| Long Description: | Power supply 640 mA with integrated choke for supplying a bus line from an uninterrupted supply. Quick diagnostics via LED display for operational readiness, fault and battery level as well as a floating contact for a fault signal indication. The accumulator module or up to 2 rechargeablebatteries can be charged in normal operation by the voltage supply. The bus voltage is provided by the batteries in the event of a mains failure. |
| |
| Product Name: | Power Supply |
| Buffer Voltage: | Yes |
| Output Current Maximum (Iout): | 0.64 A |
| Power Loss: | 10 W |
| Number of LEDs: | 1 |
| Number of Integrated Chokes: | 1 |
| Number of Supplied Lines: | 1 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.498 kg |
| Size: | 8 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 0.55 kg |
| Package Level 1 EAN: | 4016779514774 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| E-Number (Finland): | 2815183 |
| E-Number (Sweden): | 1750034 |
| E-Number (Switzerland): | 405800205 |
| Replacement Product ID (NEW): | 2CDG110275R0011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK501045D2701 |
| Instructions and Manuals: | GHQ6307062P0002 |
| RoHS Information: | 2CDK501045D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC501004D0201 |
| 2CDC501023D0203 | |
| Installing and Commissioning Manual: | 2CDC501005D0202 |
| Instructions and Manuals: | GHQ6307062P0002 |
| |
| ETIM 6: | EC000675 - Power supply for bus system |
| ETIM 7: | EC000675 - Power supply for bus system |
| ETIM 8: | EC000675 - Power supply for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Voltage source and generator / Voltage source |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8504 40 90 |
| UNSPSC: | 39121004 |
| eClass: | V11.0 : 27143114 |
| IDEA Granular Category Code (IGCC): | 4127 >> Power supply units |
| Object Classification Code: | A |
