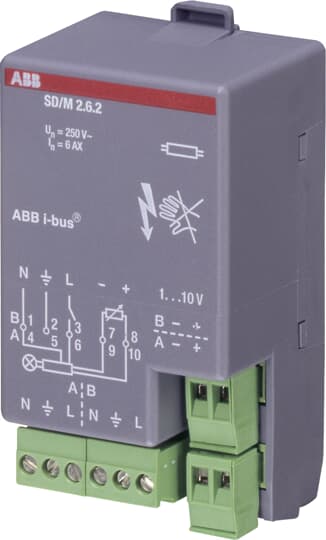

SD/M2.6.2 Switch/Dim Actuator Module, 2-fold, 6 AX
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SD/M2.6.2 |
| Product ID: | 2CDG110107R0011 |
| EAN: | 4016779680660 |
| Catalog Description: | SD/M2.6.2 Switch/Dim Actuator Module, 2-fold, 6 AX |
| Long Description: | Module for plugging into the Room Controller Basis Device. It enables the switching and dimming of two groups of luminaires in connection with electronic ballasts via a 1-10 V control voltage. High switching capacity. |
| |
| Product Name: | Multifunction Room Automation |
| Rated Operational Voltage: | 230 V AC |
| Voltage Range: | 230 V |
| Rated Current (In): | 6 A |
| Maximum Switching Current: | 6 mA |
| Rated Frequency (f): | 50 Hz |
| Maximum Switching Power: | 1380 W |
| Power Loss: | 0 W |
| Number of Outputs: | 2 |
| Number of LEDs: | 0 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | Built-in Installation |
| Manual Operation: | No |
| Suitable for C-Load: | Yes |
| Mounting on DIN Rail: | No |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 49 mm |
| Product Net Height: | 42 mm |
| Product Net Depth / Length: | 93 mm |
| Product Net Weight: | 0.13 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 85 mm |
| Package Level 1 Height: | 72 mm |
| Package Level 1 Depth / Length: | 95 mm |
| Package Level 1 Gross Weight: | 0.17 kg |
| Package Level 1 EAN: | 4016779680660 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815178 |
| E-Number (Sweden): | 1751431 |
| E-Number (Switzerland): | 405445105 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK514083D2701 |
| Instructions and Manuals: | 2CDG941064P0002 |
| RoHS Information: | 2CDK514083D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC514016D0202 |
| Instructions and Manuals: | 2CDG941064P0002 |
| |
| ETIM 6: | EC001094 - Dimming actuator for bus system |
| ETIM 7: | EC001094 - Dimming actuator for bus system |
| ETIM 8: | EC001094 - Dimming actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143123 |
| Object Classification Code: | A |
