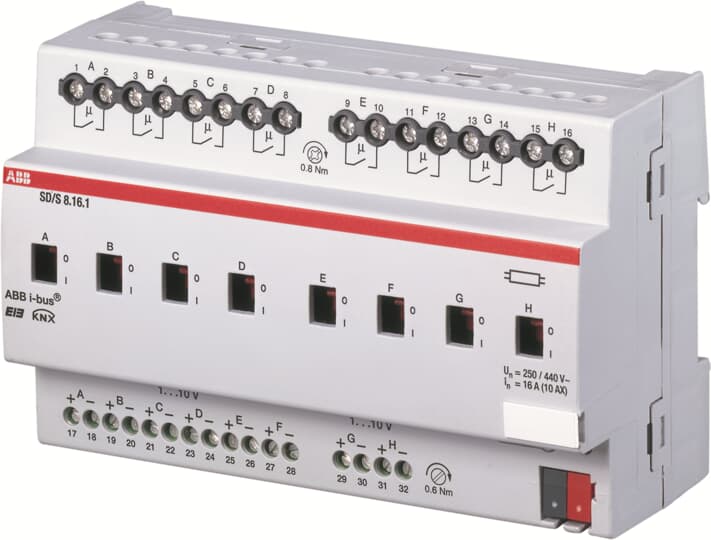

SD/S8.16.1 Switch-/Dim Actuator, 8-fold, 16 A, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SD/S8.16.1 |
| Product ID: | 2CDG110081R0011 |
| EAN: | 4016779659185 |
| Catalog Description: | SD/S8.16.1 Switch-/Dim Actuator, 8-fold, 16 A, MDRC |
| Long Description: | MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary. |
| |
| Product Name: | Lighting Control |
| Rated Operational Voltage: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | KNX |
| Maximum Switching Current: | 16 mA |
| Rated Frequency (f): | 50 / 60 Hz |
| Power Loss: | 10.4 W |
| Number of Outputs: | 8 |
| Number of LEDs: | 0 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Manual Operation: | Yes |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.508 kg |
| Built-In Depth (t2): | 64.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 0.56 kg |
| Package Level 1 EAN: | 4016779659185 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815181 |
| E-Number (Sweden): | 1750171 |
| E-Number (Switzerland): | 405442805 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK507127D2701 |
| Instructions and Manuals: | 2CDG941042P0003 |
| RoHS Information: | 2CDK507127D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC507067D0201 |
| 2CDC507071D0201 | |
| Instructions and Manuals: | 2CDG941042P0003 |
| |
| ETIM 6: | EC001094 - Dimming actuator for bus system |
| ETIM 7: | EC001094 - Dimming actuator for bus system |
| ETIM 8: | EC001094 - Dimming actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143123 |
| Object Classification Code: | A |
