General Information | |
| Extended Product Type: | SCS |
| Product ID: | GHQ3050027R0001 |
| EAN: | 4016779585750 |

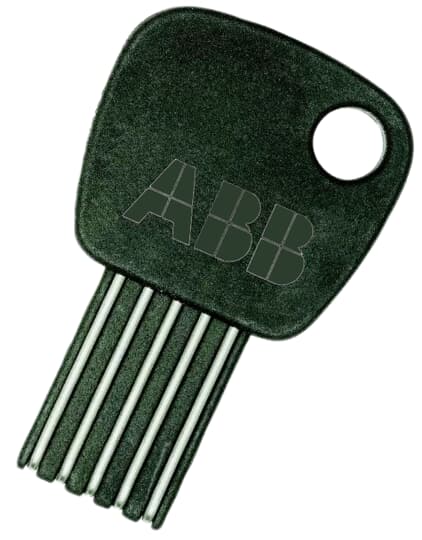

| Catalog Description: | SCS SafeKey Chipkey |
| Long Description: | Electronic Chipkey for SafeKey-Units. Up to 250 Keys may be handled by GM/A 8.1 KNX Security Panael and L240 Alarm System. It is an electronic carrier medium for setting / unsetting via a SafeKey unit. A SafeKey Chipkey can be authorized for any number of different SafeKey systems with different levels of authorization. |
| |
| Product Name: | Conventional |
| Power Loss: | 0 W |
| Compatible Bus Systems: | S-Bus/XIB |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 30 mm |
| Product Net Height: | 50 mm |
| Product Net Depth / Length: | 5 mm |
| Product Net Weight: | 0.008 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 5 mm |
| Package Level 1 Height: | 30 mm |
| Package Level 1 Depth / Length: | 50 mm |
| Package Level 1 Gross Weight: | 0.02 kg |
| Package Level 1 EAN: | 4016779585750 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| E-Number (Switzerland): | 961890913 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107046A4019 |
| Instructions and Manuals: | 2CDC541096D0102 |
| RoHS Information: | 9AKK107046A4019 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC541097D0101 |
| Instructions and Manuals: | 2CDC541096D0102 |
| |
| ETIM 6: | EC001771 - Electronic data medium for switchgear |
| ETIM 7: | EC001771 - Electronic data medium for switchgear |
| ETIM 8: | EC001771 - Electronic data medium for switchgear |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27399214 |
| Object Classification Code: | A |
