Article: SCR T7M-X1 48Va.c./d.c.
Article: SCR T7M-X1 48Va.c./d.c.
SCR T7M-X1 48Va.c./d.c.
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SCR T7M-X1 48Va.c./d.c. |
| Product ID: | 1SDA062078R1 |
| EAN: | 8015644646189 |
| Catalog Description: | SCR T7M-X1 48Va.c./d.c. |

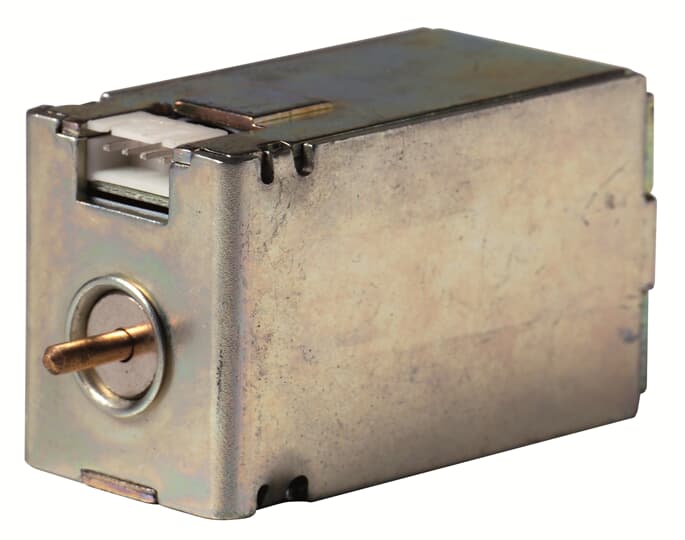

| Long Description: | SHUNT CLOSING RELEASE 48V AC-DC T7M-X1 |
| |
| EAN: | 8015644646189 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| |
| Product Net Weight: | 1 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 55 mm |
| Package Level 1 Depth / Length: | 135 mm |
| Package Level 1 Gross Weight: | 0.15 kg |
| Package Level 1 EAN: | 8015644646189 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Configuration Type: | Loose or configurable |
| Current Type: | AC/DC |
| Product Main Type: | Accessories for Tmax T |
| Product Name: | Accessory |
| Product Type: | ACC |
| Rated Voltage (Ur): | 48 V AC |
| 48 V DC | |
| Standards: | IEC |
| Suitable For: | T7, X1 |
| Suitable for Product Class: | SACE Emax |
| SACE Tmax T | |
| |
| Data Sheet, Technical Information: | 1SDC210015D0201 |
| Declaration of Conformity - CE: | 1SDL000165R0001 |
| Environmental Information: | 1SDC210015D0201 |
| Instructions and Manuals: | 1SDC210015D0201 |
| REACH Declaration: | 9AKK108466A1425 |
| RoHS Information: | 9AKK108466A1424 |
| |
| ETIM 6: | EC002483 - Switch spool for power circuit breaker |
| ETIM 7: | EC002483 - Switch spool for power circuit breaker |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
