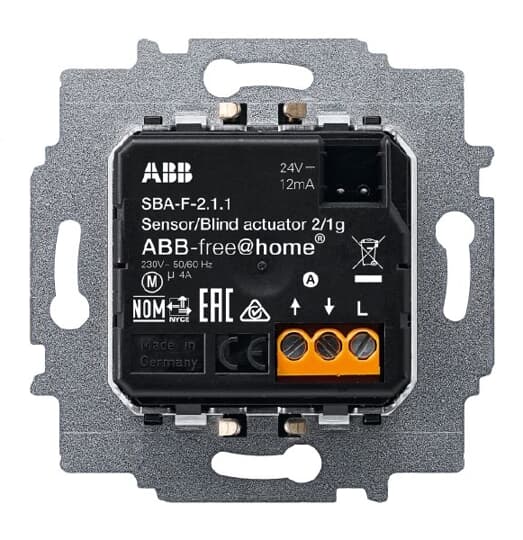

SBA-F-2.1.1 Sensor/Blind Actuator, 2/1gang, FM
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SBA-F-2.1.1 |
| Product ID: | 2CDG006220R0129 |
| EAN: | 4011395180174 |
| Catalog Description: | SBA-F-2.1.1 Sensor/Blind Actuator, 2/1gang, FM |
| Long Description: | SBA-F-2.1.1 Sensor/Blind act. 2/1g, FM |
| |
| Product Name: | Shading Control |
| Current Type: | AC |
| Maximum Switching Current: | 4 mA |
| Maximum Switching Power: | 96 W |
| Number of Outputs: | 1 |
| Number of LEDs: | 1 |
| Number of Input Channels: | 2 |
| Compatible Bus Systems: | free@home |
| Mounting Type: | Flush Mounted |
| Manual Operation: | No |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 71 mm |
| Product Net Height: | 45 mm |
| Product Net Depth / Length: | 71 mm |
| Product Net Weight: | 0.055 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 58 mm |
| Package Level 1 Depth / Length: | 78 mm |
| Package Level 1 Gross Weight: | 0.074 kg |
| Package Level 1 EAN: | 4011395180174 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK2017-108386 |
| |
| ETIM 6: | EC001330 - Shutting actuator for bus system |
| ETIM 7: | EC001330 - Shutting actuator for bus system |
| ETIM 8: | EC001330 - Shutting actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143128 |
| Object Classification Code: | A |
