Article: SRS24/5
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SRS24/5 |
| Product ID: | 2CDG420017R0011 |
| EAN: | 4016779964067 |

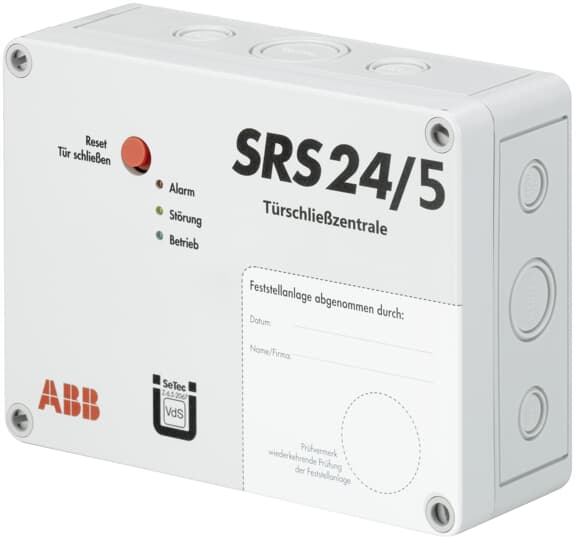

| Catalog Description: | SRS24/5 Door Locking Unit, 5 Watt |
| Long Description: | SRS24/5 Door Locking Unit, 5 Watt |
| |
| Product Name: | Fire Door Control Panels |
| Auxiliary Voltage AC/DC: | 230 V AC |
| Power Loss: | 12.8 W |
| Number of Outputs: | 3 |
| Mounting Type: | Surface Mounted |
| Manual Operation: | Yes |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP42 |
| |
| Product Net Width: | 130 mm |
| Product Net Height: | 63 mm |
| Product Net Depth / Length: | 180 mm |
| Product Net Weight: | 0.5 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 145 mm |
| Package Level 1 Height: | 75 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Gross Weight: | 0.03 kg |
| Package Level 1 EAN: | 4016779964067 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540151D2701 |
| Instructions and Manuals: | 2CDC542172D0101 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC542172D0101 |
| Instructions and Manuals: | 2CDC542172D0101 |
| |
| ETIM 6: | EC001768 - Door locking central station |
| ETIM 7: | EC001768 - Door locking central station |
| ETIM 8: | EC001768 - Door locking central station |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27144190 |
