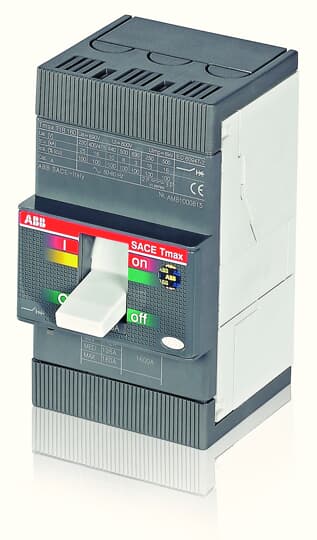

T1N 160 TMD160-1600 3p F FC Cu (1×70mm2)
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | T1N 160 TMD160-1600 3p F FC Cu (1×70mm2) |
| Product ID: | 1SDA050924R1 |
| EAN: | 8015644513368 |
| Catalog Description: | T1N 160 TMD160-1600 3p F FC Cu (1×70mm2) |
| Long Description: | C.BREAKER TMAX T1N 160 FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu 70mm2 AND THERMOMAGNETIC RELEASE TMD R 160-1600 A |
| |
| EAN: | 8015644513368 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| |
| Product Net Width: | 76 mm |
| Product Net Height: | 130 mm |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 1 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 128 mm |
| Package Level 1 Height: | 135 mm |
| Package Level 1 Depth / Length: | 143 mm |
| Package Level 1 Gross Weight: | 1.11 kg |
| Package Level 1 EAN: | 8015644513368 |
| |
| Electrical Durability: | 8000 cycle |
| 120 cycles per hour | |
| Mechanical Durability: | 25000 cycle |
| 240 cycles per hour | |
| Number of Poles: | 3 |
| Power Loss: | at Rated Operating Conditions per Pole 15 W |
| Product Main Type: | SACE Tmax T |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | CB |
| Rated Current (In): | 160 A |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 800 V |
| Rated Operational Voltage: | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 37,5 kA |
| (230 V AC) 37,5 kA | |
| (380 V AC) 27 kA | |
| (400 V AC) 27 kA | |
| (415 V AC) 27 kA | |
| (440 V AC) 11 kA | |
| (500 V AC) 7,5 kA | |
| (690 V AC) 3 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 5 kA |
| (230 V AC) 5 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 22 kA | |
| (500 V AC) 15 kA | |
| (690 V AC) 6 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (250 V DC) 3 Poles in Series 40 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu): | 160 A |
| Release: | TMD |
| Release Type: | TM |
| Short-Circuit Performance Level: | N |
| Standards: | IEC 60947 |
| Sub-type: | T1 |
| Suitable For: | T1 |
| Suitable for Product Class: | Moulded Case Circuit Breakers |
| Terminal Connection Type: | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest): | 3000 V |
| Test Voltage at Industrial Frequency for 1 Minute: | 3000 V |
| Version: | F |
| |
| Data Sheet, Technical Information: | 1SDC210004D0203 |
| Declaration of Conformity - CE: | 1SDL000165R0001 |
| Environmental Information: | 1SDL000140R0 |
| GL Certificate: | 1SDL000163R0058 |
| Instructions and Manuals: | ITSCE-RH0011001 |
| Instructions and Manuals (Part 2): | ITSCE-RH0100.001 |
| RoHS Information: | 1SDL000200R0001 |
| Data Sheet, Technical Information (Part 2): | 1SDM000030R0001 |
| |
| Object Classification Code: | Q |
| UNSPSC: | 39121100 |
