Article: SZZ00
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SZZ00 |
| Product ID: | 2CPX043748R9999 |
| EAN: | 4011617437482 |
| Catalog Description: | SZZ00 Enclosure accessories |

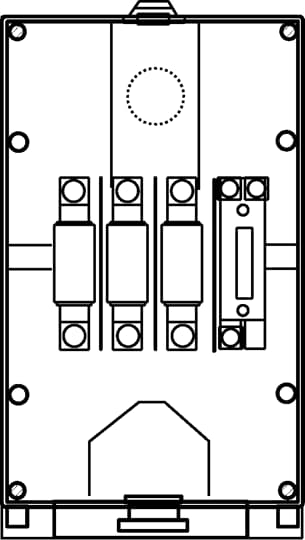

| Long Description: | House junction box according to DIN 43627, size KH00A, suitable for meter connection columns. |
| |
| Product Name: | Enclosure accessories |
| Rated Current (In): | 100 A |
| Enclosure Type: | Enclosure accessories |
| Fuse Type: | Knife blade fuse (NH) |
| Mounting Type: | Mounting plate |
| Housing Material: | Plastic |
| Material: | Plastic |
| DIN Place Units: | 0 |
| Meter Boards: | 1 |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Light grey |
| |
| Degree of Protection: | IP54 |
| |
| Width in Number of Modular Spacings: | 12 |
| Product Net Width: | 238 mm |
| Product Net Height: | 412 mm |
| Product Net Depth / Length: | 132 mm |
| Product Net Weight: | 3.2 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 238.000 mm |
| Package Level 1 Height: | 412.000 mm |
| Package Level 1 Depth / Length: | 132.000 mm |
| Package Level 1 Gross Weight: | 3.328 kg |
| Package Level 1 EAN: | 4011617437482 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Austria (AT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000100 - Fuse enclosure |
| ETIM 7: | EC000100 - Fuse enclosure |
| ETIM 8: | EC000100 - Fuse enclosure |
| EPLAN Catalog Tree: | Mechanics / Housings / Accessories |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85381000 |
| Object Classification Code: | U |
