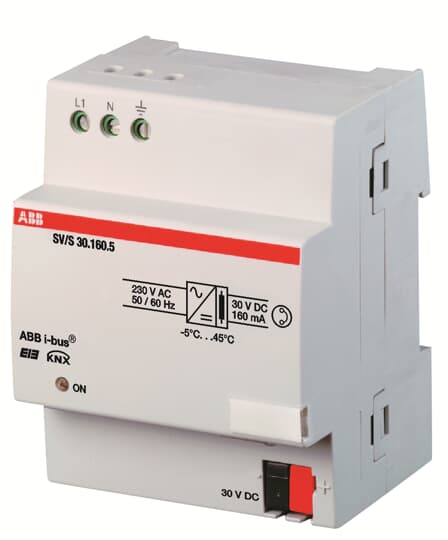

SV/S30.160.5 EIB Power Supply, 160 mA, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SV/S30.160.5 |
| Product ID: | 2CDG110085R0011 |
| EAN: | 4016779662062 |
| Catalog Description: | SV/S30.160.5 EIB Power Supply, 160 mA, MDRC |
| Long Description: | Power supply with integrated choke for production and monitoring of the ABB i-bus® system voltage. The power supply is connected to the bus line via a bus connecting terminal. |
| |
| Product Name: | Power Supply |
| Voltage Range: | 230 V AC |
| Number of Outputs: | 1 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Manual Operation: | No |
| Color: | Light grey |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 65 mm |
| Product Net Depth / Length: | 90 mm |
| Product Net Weight: | 0.218 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.25 kg |
| Package Level 1 EAN: | 4016779662062 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK501048D2701 |
| Instructions and Manuals: | 2CDG941046P0002 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC501036D0201 |
| Instructions and Manuals: | 2CDG941046P0002 |
| |
| ETIM 6: | EC000675 - Power supply for bus system |
| ETIM 7: | EC000675 - Power supply for bus system |
| ETIM 8: | EC000675 - Power supply for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Voltage source and generator / Voltage source |
| CN8: | 8504 40 90 |
| UNSPSC: | 39121004 |
| eClass: | V11.0 : 27143114 |
| IDEA Granular Category Code (IGCC): | 4127 >> Power supply units |
| Object Classification Code: | A |
