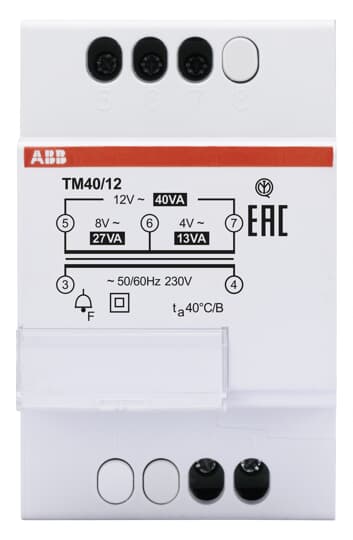

Article: TM40/12
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TM40/12 |
| Product ID: | 2CSM228775R0802 |
| EAN: | 8012542287759 |
| Catalog Description: | TM40/12 Fail safe bell transformer |
| Long Description: | These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply. |
| |
| Product Name: | Fail safe bell transformer |
| Primary Voltage: | 230 V |
| Secondary Voltage: | 3 12 V |
| 1 4 V | |
| 2 8 V | |
| Secondary Current: | Amperage 1 10 A |
| Amperage 3 3.33 A | |
| Amperage 2 5 A | |
| Output Current Maximum (Iout): | 10 A |
| Power Loss: | 3 W |
| Power Supply: | 40 V·A |
| Rated Output Power: | 40 W |
| Options Provided: | None |
| |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 52.5 mm |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 0.065 m |
| Product Net Weight: | 0.450 kg |
| Product Net Length: | 65 mm |
| |
| Package Level 1 Units: | box 4 piece |
| Package Level 1 Width: | 0.09 m |
| Package Level 1 Height: | 0.08 m |
| Package Level 1 Depth / Length: | 0.054 m |
| Package Level 1 Gross Weight: | 1.8 kg |
| Package Level 1 EAN: | 8012542287766 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85043121 |
| Country of Origin: | Romania (RO) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5640 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CSC446004K0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC000001D0202 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001547 - Bell transformer |
| ETIM 7: | EC001547 - Bell transformer |
| ETIM 8: | EC001547 - Bell transformer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85043121 |
| Object Classification Code: | T |
