Article: TS1-M3-S1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TS1-M3-S1 |
| Product ID: | 1SAM301911R1001 |
| EAN: | 4013614556630 |

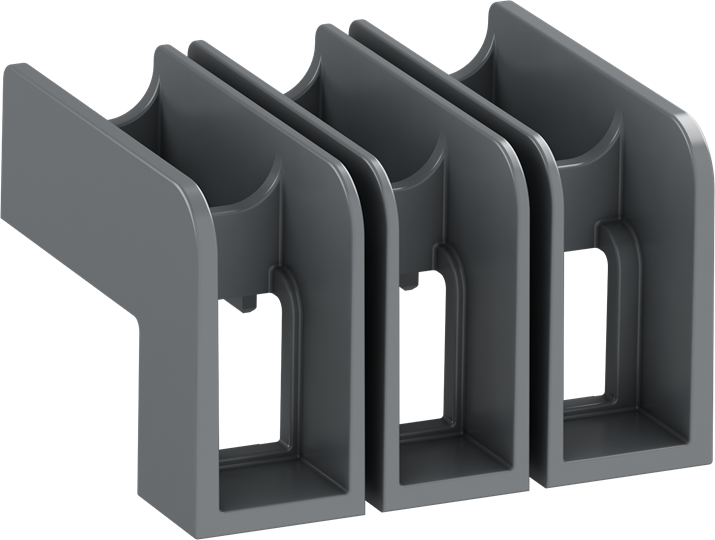

| Catalog Description: | TS1-M3-S1 Terminal Spacer |
| Long Description: | MS132 Manual Motor Starters with screw terminals are approved as Self-Protected Combination Motor Controllers (Type E) acc. to UL60947-4-1. For this air clearance and creepage distances on the line side of MS132 must be increased, which can be achieved by either mounting S1-M3-25 or S1-M3-35 3- phase feeder blocks or by mounting TS1 terminal spacers. TS1 terminal spacers cannot be used for group installations that involve PS1 compact busbars. |
| |
| Minimum Order Quantity: | 2 piece |
| Customs Tariff Number: | 85389099 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC131022M6802 |
| 2CDC131057M6801 | |
| 2CDC131159M6801 | |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 37.5 mm |
| Product Net Depth / Length: | 27.5 mm |
| Product Net Weight: | 0.012 kg |
| |
| Product Name: | Terminal Spacer |
| Suitable For: | MS132 |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Mechanical |
| Accessory Type: | Terminal Spacer |
| |
| RoHS Status: | No declaration needed |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CDC131022M6802 |
| 2CDC131057M6801 | |
| 2CDC131159M6801 | |
| Instructions and Manuals (Part 2): | 2CDC131060M0202 |
| RoHS Information: | No declaration needed |
| |
| Package Level 1 Width: | 55 mm |
| Package Level 1 Depth / Length: | 70 mm |
| Package Level 1 Height: | 35 mm |
| Package Level 1 Gross Weight: | 0.03 kg |
| Package Level 1 EAN: | 4013614556647 |
| Package Level 1 Units: | box 2 piece |
| |
| ETIM 5: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| eClass: | V11.0 : 27371392 |
| UNSPSC: | 39121521 |
