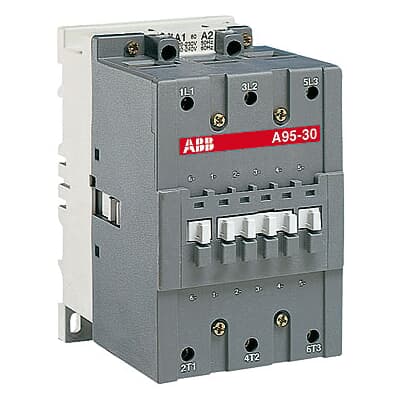

Article: UA95-30-00
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UA95-30-00 |
| Product ID: | 1SFL431022R9100 |
| EAN: | 7320500200735 |
| Catalog Description: | UA95-30-00 400-415V 50Hz Contactor |
| Long Description: | A 3-pole contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 600 V. Operated with datasheet specified control voltages. Equipped with no auxiliary contacts . |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC101145L0202 |
| Instructions and Manuals: | 5309 660-60 |
| |
| Product Net Width: | 90 mm |
| Product Net Depth / Length: | 123.5 mm |
| Product Net Height: | 148 mm |
| Product Net Weight: | 1.8 kg |
| |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Power AC-3 (Pe): | (380 / 400 V) 45 kW |
| Rated Operational Power AC-6b (Pe): | (230 / 240 V) 40 °C, 50 / 60 Hz 35 kvar |
| (230 / 240 V) 55 °C, 50 / 60 Hz 35 kvar | |
| (230 / 240 V) 70 °C, 50 / 60 Hz 30 kvar | |
| (400 / 415 V) 40 °C, 50 / 60 Hz 65 kvar | |
| (400 / 415 V) 70 °C, 50 / 60 Hz 55 kvar | |
| (400 / 415 V) 55 °C, 50 / 60 Hz 65 kvar | |
| (440 V) 40 °C, 50 / 60 Hz 65 kvar | |
| (440 V) 55 °C, 50 / 60 Hz 65 kvar | |
| (440 V) 70 °C, 50 / 60 Hz 55 kvar | |
| (500 / 550 V), 40 °C, 50 / 60 Hz 70 kvar | |
| (500 / 550 V) 55 °C, 50 / 60 Hz 70 kvar | |
| (500 / 550 V) 70 °C, 50 / 60 Hz 60 kvar | |
| (690 V) 40 °C, 50 / 60 Hz 80 kvar | |
| (690 V) 55 °C, 50 / 60 Hz 80 kvar | |
| (690 V) 70 °C, 50 / 60 Hz 70 kvar | |
| Rated Control Circuit Voltage (Uc): | 50 Hz 400 ... 415 V |
| 60 Hz 415 ... 440 V | |
| Coil Consumption: | Holding at Max. Rated Control Circuit Voltage 50 Hz 22 V·A |
| Holding at Max. Rated Control Circuit Voltage 60 Hz 26 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 60 Hz 450 V·A | |
| Terminal Type: | Cable Clamp |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| CQC Certificate: | CQC2003010304088242 |
| CQC2009010304353513 | |
| cULus Certificate: | 20160916- E36588 |
| Declaration of Conformity - CCC: | 2020980304001551 |
| 2020980304001055 | |
| Declaration of Conformity - CE: | 2CMT2015-005436 |
| Environmental Information: | 1SFC101001D0201 |
| Instructions and Manuals: | 5309 660-60 |
| RoHS Information: | 2CMT2015-005436 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 170 mm |
| Package Level 1 Depth / Length: | 140 mm |
| Package Level 1 Height: | 170 mm |
| Package Level 1 Gross Weight: | 2 kg |
| Package Level 1 EAN: | 7320500200735 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC001079 - Capacitor magnet contactor |
| ETIM 5: | EC001079 - Capacitor magnet contactor |
| ETIM 6: | EC001079 - Capacitor contactor |
| ETIM 7: | EC001079 - Capacitor contactor |
| eClass: | V11.0 : 27371006 |
| UNSPSC: | 39121529 |
| IDEA Granular Category Code (IGCC): | 4756 >> Capacitor magnet contactor |
