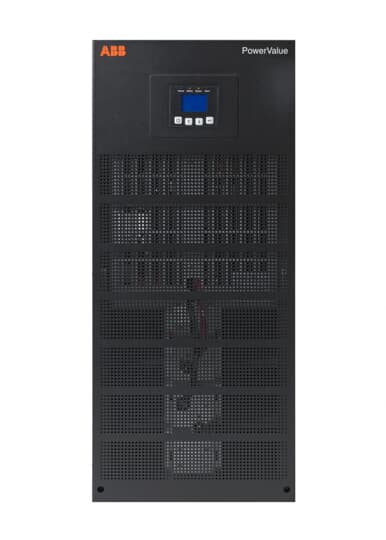

UPS BFP PowerValue 31/11 T 10kVA 16min
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UPS BFP PowerValue 31/11 T 10kVA 16min |
| Product ID: | 4NWP101691R0003 |
| EAN: | 7640169262463 |
| Catalog Description: | UPS BFP PowerValue 31/11 T 10kVA 16min |
| Long Description: | VFI UPS PowerValue 11/31 T 10000VA/9000W; 230V; 50/60Hz; 18 min |
| |
| Apparent Power Output: | 10000 V·A |
| Battery Chemical Composition: | Lead-Acid |
| Battery Runtime: | 16 minute [unit of time] |
| Battery Type: | Portable |
| Battery Weight: | 2.5 kg |
| CN8: | 85044052 |
| Communication Interface: | USB, RS-232 |
| Communication Protocol and Connection: | SNMP |
| Connection Type: | Fixed Connection |
| Country of Origin: | China (CN) |
| Customs Tariff Number: | 85044052 |
| Data Sheet, Technical Information: | 4NWD002980 |
| Declaration of Conformity - CE: | 4NWD004822 |
| EAN: | 7640169262463 |
| ETIM 6: | EC000382 - UPS |
| ETIM 7: | EC000382 - UPS |
| ETIM 8: | EC000382 - UPS |
| Efficiency: | Overall 93.10 % |
| Economy Mode (Eco-Mode) 97.00 % | |
| Environmental Information: | No declaration needed |
| Harmonic Distortion: | 2.00 % |
| Input Voltage (Uin): | 220 V |
| 230 V | |
| 240 V | |
| 380 V | |
| 400 V | |
| 415 V | |
| Input Voltage Type: | AC |
| Instructions and Manuals: | 4NWD003235 |
| Invoice Description: | UPS BFP PowerValue 31/11 T 10kVA 16min |
| Minimum Order Quantity: | 1 piece |
| Number of Batteries: | 24 |
| Number of Outputs: | Fixed Connections 1 |
| Number of Phases: | Primary - 1 |
| Primary - 3 | |
| Secondary - 1 | |
| Object Classification Code: | G |
| Options Provided: | Auto shut down function |
| Potential free switch contact | |
| Network-management | |
| Output Voltage (Uout): | 208 V |
| 220 V | |
| 230 V | |
| 240 V | |
| Package Level 1 Depth / Length: | 815 mm |
| Package Level 1 EAN: | 7640169262463 |
| Package Level 1 Gross Weight: | 194 kg |
| Package Level 1 Height: | 1120 mm |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 475 mm |
| Power Factor: | 0.9 |
| Product Main Type: | PowerValue 11/31 T |
| Product Name: | UPS |
| Product Net Depth / Length: | 715 mm |
| Product Net Height: | 890 mm |
| Product Net Weight: | 178 kg |
| Product Net Width: | 350 mm |
| Rated Frequency (f): | Primary 50 Hz |
| Primary 60 Hz | |
| Secondary 50 Hz | |
| Secondary 60 Hz | |
| Rated Output Power: | 9000 W |
| RoHS Date: | 1216 |
| RoHS Information: | 4NWD003889 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Selling Unit of Measure: | piece |
| Short Description: | UPS BFP PowerValue 31/11 T 10kVA 16min |
| Uninterruptible Power Supply Form Factor: | Tower |
| Uninterruptible Power Supply Topology: | On-Line Double Conversion |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
