Article: UZS636N
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UZS636N |
| Product ID: | 2CPX031133R9999 |
| EAN: | 4011617311331 |
| Catalog Description: | UZS636N Enclosure accessories |

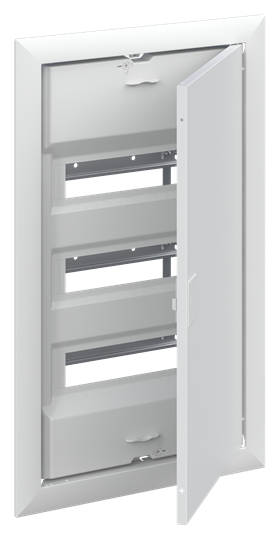

| Long Description: | Project phases delivery, suitable for UK63.., as a installation kit, with Plastic cover, device carrier with removable DIN rails, trim frame and door powder-coated sheet steel, color: Alpine white, RAL 9016 and modular N/PE Quick terminlas |
| |
| Product Name: | Enclosure accessories |
| Number of Rows: | 3 |
| Accessory Type: | project kit |
| Configuration Type: | DIN frame-door-cover-terminals |
| Enclosure Type: | Enclosure accessories |
| Material: | Other |
| DIN Place Units: | 36 |
| Model Number: | Protective door |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| Terminal Type: | Quick-Terminal |
| |
| Degree of Protection: | IP30 |
| |
| Product Net Width: | 384 mm |
| Product Net Height: | 622 mm |
| Product Net Depth / Length: | 36 mm |
| Product Net Weight: | 3.038 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 390.000 mm |
| Package Level 1 Height: | 630.000 mm |
| Package Level 1 Depth / Length: | 40.000 mm |
| Package Level 1 Gross Weight: | 3.16 kg |
| Package Level 1 EAN: | 4011617311331 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CPC129380M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | 2CPC129380M5601 |
| |
| ETIM 6: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 7: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 8: | EC002625 - Mounting accessories (enclosure/cabinet) |
| EPLAN Catalog Tree: | Mechanics / Housings / Accessories |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
