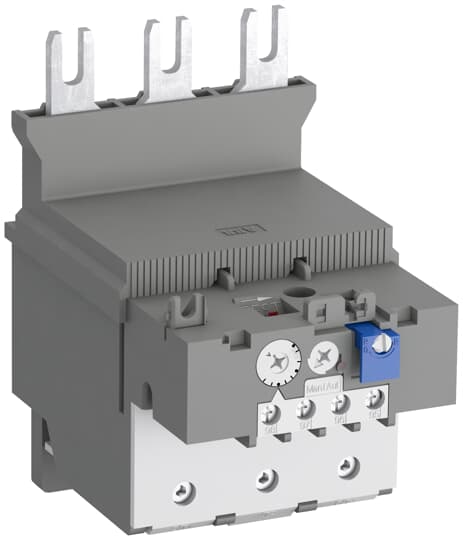

TF140DU-110-V1000 Thermal Overload Relay
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TF140DU-110-V1000 |
| Product ID: | 1SAZ431301R1002 |
| EAN: | 4013614499524 |
| Catalog Description: | TF140DU-110-V1000 Thermal Overload Relay |
| Long Description: | TF140DU-110-V1000 Thermal Overload Relay with ATEX |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC106050M6802 |
| Instructions and Manuals (Part 2): | 2CDC106082M6801 |
| Dimension Diagram: | 1SAZ400404F0001 |
| |
| Product Net Width: | 89 mm |
| Product Net Height: | 140 mm |
| Product Net Depth / Length: | 126 mm |
| Product Net Weight: | 0.82 kg |
| |
| Setting Range: | 80 ... 110 A |
| Rated Operational Voltage: | Auxiliary Circuit 440 V DC |
| Auxiliary Circuit 500 V AC | |
| Main Circuit 690 V AC | |
| Main Circuit 440 V DC | |
| Rated Operational Current (Ie): | 110 A |
| Rated Operational Current AC-3 (Ie): | 110 A |
| Rated Frequency (f): | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Main Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Main Circuit 8 kV | |
| Rated Insulation Voltage (Ui): | 690 V |
| Number of Poles: | 3 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Protected Poles: | 3 |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit NC 10 A |
| Auxiliary Circuit NO 6 A | |
| Rated Operational Current AC-15 (Ie): | (120 V) NC 3 A |
| (120 V) NO 1.5 A | |
| (240 V) NC 3 A | |
| (240 V) NO 1.5 A | |
| (400 V) NC 1.9 A | |
| (400 V) NO 1 A | |
| (440 V) NC 1 A | |
| (440 V) NO 1 A | |
| (500 V) NC 1 A | |
| (500 V) NO 1 A | |
| Rated Operational Current DC-13 (Ie): | (125 V) NC 0.25 A |
| (125 V) NO 0.25 A | |
| (24 V) NC 1.25 A | |
| (24 V) NO 1.25 A | |
| (250 V) NC 0.12 A | |
| (250 V) NO 0.04 A | |
| (60 V) NC 0.25 A | |
| (60 V) NO 0.25 A | |
| Degree of Protection: | Housing IP20 |
| Main Circuit Terminals IP10 | |
| Pollution Degree: | 3 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 0.75 ... 4 mm² | |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1/2x 16 ... 70 mm² |
| Flexible with Insulated Ferrule 1/2x 16 ... 70 mm² | |
| Flexible 1/2x 16 ... 70 mm² | |
| Rigid 1/2x 16 ... 70 mm² | |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Main Circuit 8 ... 10 N·m | |
| Wire Stripping Length: | Auxiliary Circuit 9 mm |
| Main Circuit 25 mm | |
| Recommended Screw Driver: | Auxiliary Circuit Pozidriv 2 |
| Main Circuit Hexagon 4 | |
| Suitable For: | AF116 |
| AF140 | |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 600 V AC |
| Ampere Rating UL/CSA: | 110 A |
| Contact Rating UL/CSA: | (NC:) B600 |
| (NO:) C300 | |
| Connecting Capacity Main Circuit UL/CSA: | Flexible 1/2x 6-2/0 AWG |
| Stranded 1/2x 6-2/0 AWG | |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 18-14 AWG |
| Stranded 1/2x 18-14 AWG | |
| Tightening Torque UL/CSA: | Auxiliary Circuit 12 in·lb |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Operation Compensated -25 ... +55 °C | |
| Storage -40 ... +70 °C | |
| Ambient Air Temperature Compensation: | Yes |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 12g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ABS Certificate: | 1SAA941004-0101 |
| ATEX Certificate: | 1SAA941003-3901 |
| BG Certificate: | 1SAA941012-2001 |
| BV Certificate: | 1SAA941003-0201 |
| CQC Certificate: | CQC2016010309922935 |
| cUL Certificate: | cUL_E48139 |
| Declaration of Conformity - CCC: | 2020980304001320 |
| Declaration of Conformity - CE: | 1SAD938507-0192 |
| DNV GL Certificate: | 1SAA941004-0301 |
| EAC Certificate: | 1SAA941002-2702 |
| Environmental Information: | 1SAC200090H0009 |
| IECEx Certificate: | 1SAA941004-4001 |
| Instructions and Manuals: | 2CDC106050M6802 |
| Instructions and Manuals (Part 2): | 2CDC106082M6801 |
| LR Certificate: | 1SAA941004-0501 |
| RINA Certificate: | RINA_ELE098115XG |
| RMRS Certificate: | 1SAA941002-0701 |
| RoHS Information: | 1SAD938503-0192 |
| UL Certificate: | UL_E48139 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 165 mm |
| Package Level 1 Height: | 133 mm |
| Package Level 1 Depth / Length: | 151 mm |
| Package Level 1 Gross Weight: | 0.945 kg |
| Package Level 1 EAN: | 4013614499524 |
| Package Level 2 Units: | 4 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Gross Weight: | 8.786 kg |
| Package Level 2 EAN: | 4013614503726 |
| |
| ETIM 5: | EC000106 - Thermal overload relay |
| ETIM 6: | EC000106 - Thermal overload relay |
| ETIM 7: | EC000106 - Thermal overload relay |
| eClass: | V11.0 : 27371501 |
| UNSPSC: | 39121520 |
| IDEA Granular Category Code (IGCC): | 5364 >> Overload relay |
